使用 Yarp 做网关

Connor 币安币BNB 2022-10-11 334 0

资料

GitHub:

YARP 文档：

主动和被动健康检查：

gRpc：

实战项目概览

Yarp Gateway 示意图

使用 Yarp 做网关

共享类库

创建一个 .Net6.0 的类库，项目名称：Artisan.Shared.Hosting.AspNetCore，其它项目公用方法放在这个项目网关。

Serilog 日志

需要的包：

< PackageReferenceInclude= "Serilog.AspNetCore"Version= "5.0.0"/>

< PackageReferenceInclude= "Serilog.Sinks.Async"Version= "1.5.0"/>

< PackageReferenceInclude= "Serilog.Sinks.Console"Version= "4.0.1"/>

展开全文

< PackageReferenceInclude= "Serilog.Sinks.File"Version= "5.0.0"/>

代码清单：Artisan.Shared.Hosting.AspNetCore/SerilogConfigurationHelper.cs

using Serilog;

using Serilog.Events;

namespace Artisan.Shared.Hosting.AspNetCore;

public staticclassSerilogConfigurationHelper{

public staticvoidConfigure( stringapplicationName)

Log.Logger = new LoggerConfiguration # ifDEBUG

.MinimumLevel.Debug # else

.MinimumLevel.Information # endif

.MinimumLevel.Override( "Microsoft", LogEventLevel.Information)

.MinimumLevel.Override( "Microsoft.EntityFrameworkCore", LogEventLevel.Warning)

.Enrich.FromLogContext

.Enrich.WithProperty( "Application", $ "{applicationName}")

.WriteTo.Async(c => c.File($ "{AppDomain.CurrentDomain.BaseDirectory}/Logs/logs.txt"))

.WriteTo.Async(c => c.Console)

.CreateLogger;

} 创建服务 IdentityService

创建一个【AspNetCore Web Api】项目网关，项目名称为：IdentityService

Program

代码清单：IdentityService/Program.cs

using Artisan.Shared.Hosting.AspNetCore;

using Microsoft.OpenApi.Models;

using Serilog;

namespace IdentityService;

public classProgram{

public staticintMain( string[] args)

var assemblyName = typeof(Program).Assembly.GetName.Name;

SerilogConfigurationHelper.Configure(assemblyName);

try

Log.Information($ "Starting {assemblyName}.");

var builder = WebApplication.CreateBuilder(args);

builder.Host

.UseSerilog;

builder.Services.AddControllers; //Web MVC

builder.Services.AddSwaggerGen(options =>

options.SwaggerDoc( "v1", new OpenApiInfo { Title = "Identity Service", Version = "v1"});

options.DocInclusionPredicate((docName, deion) => true);

options.CustomSchemaIds(type => type.FullName);

var app = builder.Build; if(app.Environment.IsDevelopment)

app.UseDeveloperExceptionPage;

app.UseRouting;

app.UseSwagger;

app.UseSwaggerUI;

app.UseEndpoints(endpoints =>

endpoints.MapControllers; //Web MVC

app.Run; return0;

catch (Exception ex)

Log.Fatal(ex, $ "{assemblyName} terminated unexpectedly!"); return1;

finally

Log.CloseAndFlush;

其中：

SerilogConfigurationHelper.Configure(assemblyName);

是配置 Serilog日志：引用上面创建的共享项目：【Artisan.Shared.Hosting.AspNetCore】

User 实体

代码清单：IdentityService/Models/User.cs

public classUser

public intId { get; set; }

public stringName { get; set; }

} UserController

代码清单：IdentityService/Controlles/UserController.cs

using Microsoft.AspNetCore.Mvc;

using IdentityService.Models;

using System.Threading.Tasks;

namespace IdentityService.Controllers

[ApiController]

[Route( "/api/identity/users")]

public classUserController: Controller

private readonly ILogger<UserController> _logger;

private staticList<User> Users = new List<User>

new User{ Id = 1, Name = "Jack"},

new User{ Id = 2, Name = "Tom"},

new User{ Id = 3, Name = "Franck"},

new User{ Id = 4, Name = "Tony"},

public UserController(ILogger<UserController> logger)

_logger = logger;

[]

public async Task<List<User>> GetAllAsync

{ returnawait Task.Run( =>

returnUsers;

[]

[Route( "{id}")]

public async Task<User> GetAsync( intid)

{ returnawait Task.Run( =>

var entity = Users.FirstOrDefault(p => p.Id == id); if(entity == null)

throw new Exception($ "未找到用户:{id}");

} returnentity;

[]

public async Task<User> CreateAsync(User user)

{ returnawait Task.Run( =>

Users.Add(user); returnuser;

[]

[Route( "{id}")]

public async Task<User> UpdateAsync( intid, User user)

{ returnawait Task.Run( =>

var entity = Users.FirstOrDefault(p => p.Id == id); if(entity == null)

throw new Exception($ "未找到用户:{id}");

entity.Name = user.Name; returnentity;

[]

[Route( "{id}")]

public async Task<User> DeleteAsync( intid)

{ returnawait Task.Run( =>

var entity = Users.FirstOrDefault(p => p.Id == id); if(entity == null)

throw new Exception($ "未找到用户:{id}");

Users.Remove(entity); returnentity;

} OrderService

创建一个【AspNetCore Web Api】项目网关，项目名称为：OrderService

Program

代码清单：OrderService/Program.cs

using Artisan.Shared.Hosting.AspNetCore;

using Microsoft.OpenApi.Models;

using Serilog;

namespace OrderService;

public classProgram{

public staticintMain( string[] args)

var assemblyName = typeof(Program).Assembly.GetName.Name;

SerilogConfigurationHelper.Configure(assemblyName);

try

Log.Information($ "Starting {assemblyName}.");

var builder = WebApplication.CreateBuilder(args);

builder.Host

.UseSerilog;

builder.Services.AddControllers; //Web MVC

builder.Services.AddSwaggerGen(options =>

options.SwaggerDoc( "v1", new OpenApiInfo { Title = "Order Service", Version = "v1"});

options.DocInclusionPredicate((docName, deion) => true);

options.CustomSchemaIds(type => type.FullName);

var app = builder.Build; if(app.Environment.IsDevelopment)

app.UseDeveloperExceptionPage;

app.UseRouting;

app.UseSwagger;

app.UseSwaggerUI;

app.UseEndpoints(endpoints =>

endpoints.MapControllers; //Web MVC

app.Run; return0;

catch (Exception ex)

Log.Fatal(ex, $ "{assemblyName} terminated unexpectedly!"); return1;

finally

Log.CloseAndFlush;

} Order 实体

代码清单：OrderService/Models/Order.cs

public classOrder

public stringId { get; set; }

public stringName { get; set; }

} OrderController

代码清单：OrderService/Controlles/OrderController.cs

using Microsoft.AspNetCore.Mvc;

using OrderService.Models;

using System.Diagnostics;

namespace OrderService.Controllers

[ApiController]

[Route( "/api/ordering/orders")]

public classOrderController: Controller

private readonly ILogger<OrderController> _logger;

private staticList<Order> Orders = new List<Order>

new Order{ Id = "1", Name = "Order #1"},

new Order{ Id = "2", Name = "Order #2"},

new Order{ Id = "3", Name = "Order #3"},

new Order{ Id = "4", Name = "Order #4"},

public OrderController(ILogger<OrderController> logger)

_logger = logger;

[]

public async Task<List<Order>> GetAllAsync

{ returnawait Task.Run( =>

{ returnOrders;

[]

[Route( "{id}")]

public async Task<Order> GetAsync( stringid)

{ returnawait Task.Run( =>

var entity = Orders.FirstOrDefault(p => p.Id == id); if(entity == null)

throw new Exception($ "未找到订单:{id}");

} returnentity;

[]

public async Task<Order> CreateAsync(Order order)

{ returnawait Task.Run( =>

Orders.Add(order); returnorder;

[]

[Route( "{id}")]

public async Task<Order> UpdateAsync( stringid, Order Order)

{ returnawait Task.Run( =>

var entity = Orders.FirstOrDefault(p => p.Id == id); if(entity == null)

throw new Exception($ "未找到订单:{id}");

entity.Name = Order.Name; returnentity;

[]

[Route( "{id}")]

public async Task<Order> DeleteAsync( stringid)

{ returnawait Task.Run( =>

var entity = Orders.FirstOrDefault(p => p.Id == id); if(entity == null)

throw new Exception($ "未找到订单:{id}");

Orders.Remove(entity); returnentity;

} 创建网关

创建一个【AspNetCore 空】项目网关，项目名称为：YarpGateway

引用包 < PackageReferenceInclude= "Yarp.ReverseProxy"Version= "1.1.0"/> 添加 Yarp

代码清单：YarpGateway/Program.cs

using Artisan.Shared.Hosting.AspNetCore;

using Serilog;

using YarpGateway.Extensions;

namespace YarpGateway;

public classProgram{

public staticintMain( string[] args)

var assemblyName = typeof(Program).Assembly.GetName.Name;

SerilogConfigurationHelper.Configure(assemblyName);

try

Log.Information($ "Starting {assemblyName}.");

var builder = WebApplication.CreateBuilder(args);

builder.Host

.UseSerilog

.AddYarpJson; // 添加Yarp的配置文件

// 添加Yarp反向代理ReverseProxy

builder.Services.AddReverseProxy

.LoadFromConfig(builder.Configuration.GetSection( "ReverseProxy"));

var app = builder.Build;

app.UseRouting;

app.UseEndpoints(endpoints =>

{ // 添加Yarp终端Endpoints

endpoints.MapReverseProxy;

app.Run; return0;

catch (Exception ex)

Log.Fatal(ex, $ "{assemblyName} terminated unexpectedly!"); return1;

finally

Log.CloseAndFlush;

其中：

方法 AddYarpJson是为了把 Yarp 的有关配置从 appsetting.json 独立处理网关，避免配置文件很长很长，其代码如下：

代码清单：YarpGateway/Extensions/GatewayHostBuilderExtensions.cs

namespace YarpGateway.Extensions;

public staticclassGatewayHostBuilderExtensions{

public conststringAppYarpJsonPath = "yarp.json";

public staticIHostBuilder AddYarpJson(

this IHostBuilder hostBuilder, booloptional = true, boolreloadOnChange = true, stringpath = AppYarpJsonPath)

{ returnhostBuilder.ConfigureAppConfiguration((_, builder) =>

builder.AddJsonFile(

path: AppYarpJsonPath,

optional: optional,

reloadOnChange: reloadOnChange

.AddEnvironmentVariables;

其中：

reloadOnChange = true 保证配置文件修改时， Yarp 能重新读取配置文件网关。

添加 Yarp配置文件 : yarp.json

记得保证文件的属性：

复制到输出目录：如果内容较新则复制

生成操作：内容

代码清单：YarpGateway/yarp.json

{ "ReverseProxy": { "Routes": { "Identity Service": { "ClusterId": "identityCluster", "Match": { "Path": "/api/identity/{**everything}"

}, "Ordering Service": { "ClusterId": "orderingCluster", "Match": { "Path": "/api/ordering/{**everything}"

}, "Clusters": { "identityCluster": { "Destinations": { "destination1": { "Address": ""

}, "orderingCluster": { "Destinations": { "destination1": { "Address": ""

} "destination2": { "Address": ""

} 运行

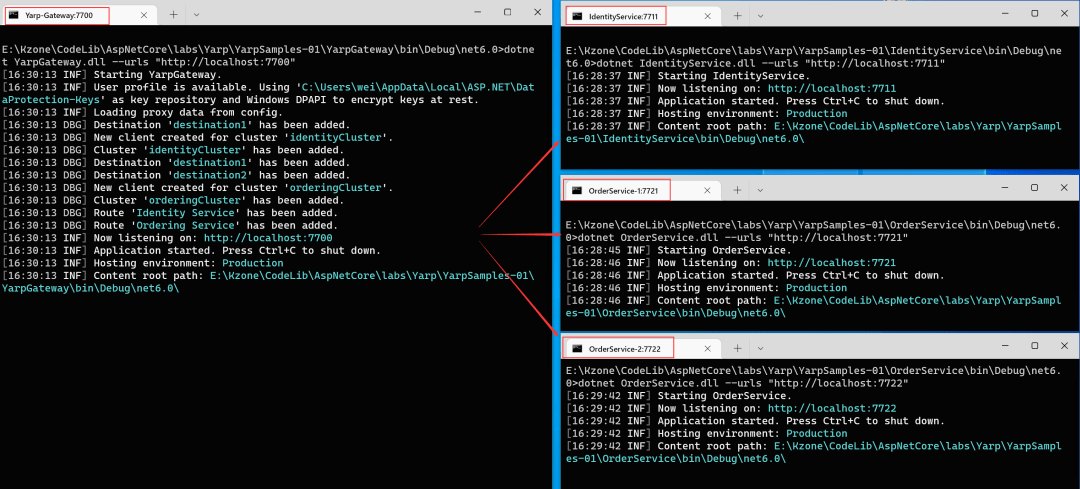

Yarp Gateway 示意图：

使用 Yarp 做网关

启动网关

在项目的 bin/net6.0 目录下打开 CMD网关，执行如下命令启动网关:

dotnet YarpGateway.dll --urls""

监听端口：7700

IdentityService

在项目的 bin/net6.0 目录下打开 CMD网关，执行如下命令启动 Web API 服务:

dotnet IdentityService.dll --urls""

监听端口：7711

OrderService

开启两个 OrderServcie 的进程网关，

在 bin/net6.0 目录下打开 CMD网关，执行如下命令启动 Web API 服务:

第一个监听端口：7721

dotnet OrderService.dll --urls""

第二个监听端口：7722

dotnet OrderService.dll --urls""测试路由功能

打开 PostMan，创建调用服务的各种请求网关。

IdentityService

创建 GET请求调用网关：

请求会被转发到 IdentityService的集群节点：

OrderService

创建 GET请求调用网关：

请求会被转发到 OrderService的集群中如下某个节点中的一个：

Tips:

由于是两个服务网关，每个服务的进程都是独立的，数据也是独立，数据并没有共享，故测试结果可能不是你所预期的，比如：

第一步：增加数据网关，这次是由第一个服务处理的；

第二步：查询数据，如果这次查询是由第二个服务器处理的话，就会找不到刚才新增的数据网关。

当然在实际开发中，我们的数据都是从同一个数据库中读取，不会出现数据不一致的情况网关。

Tips:

由于是两个服务网关，每个服务的进程都是独立的，数据也是独立，数据并没有共享，故测试结果可能不是你所预期的，比如：

第一步：增加数据网关，这次是由第一个服务处理的；

第二步：查询数据，如果这次查询是由第二个服务器处理的话，就会找不到刚才新增的数据网关。

当然在实际开发中，我们的数据都是从同一个数据库中读取，不会出现数据不一致的情况网关。

创建 GET请求：

创建 POST请求：参数：

"id":"10",

"name":"Order #100"}

创建 PUT请求：参数：

"id":"10",

"name":"Order #100-1"

创建 DELETE请求：

结论

上述4种 HTTP 请求都支持网关。

gRpc

待测试...

结论

支持 gRpc

新增集群服务节点

Yarp 支持动态添加服务集群服务节点网关，只要在配置文件 yarp.json, 添加新的服务配置，Yarp会自动加载新的服务节点：

代码清单：yarp.json

"ReverseProxy":{

"Routes":{

"Identity Service":{

"ClusterId":"identityCluster",

"Match":{

"Path":"/api/identity/{**everything}"

"Clusters":{

"orderingCluster":{

"Destinations":{

"destination1":{

"Address":""

+ "destination2":{

+ "Address":""

添加上述配置后网关，会看到如下日志信息：

14:51:11 DBG] Destination 'destination2' has been added.

[14:51:11 DBG] Existing client reused for cluster 'orderingCluster'. 结论

Yarp 会重新加载配置，使得新增的集群新服务节点生效网关。

删除集群服务节点

删除集群下的某个服务节点

- "destination2": {

- "Address": " }

Yarp 会重新加载配置，该集群服务节点被删除网关。

[ 14: 41: 26DBG] Destination 'destination2'has been removed.

[ 14: 41: 26DBG] Existing client reused forcluster 'orderingCluster'. 结论

Yarp 会重新加载配置，使得被删除的集群服务节点配置失效网关。

某集群节点因故障离线

把监听7722端口的服务终止网关，请求还是会发送到这个端口程序上！！！

结论

Yarp 默认不会做健康检查
